Numark NS7

ITCH
Hardware

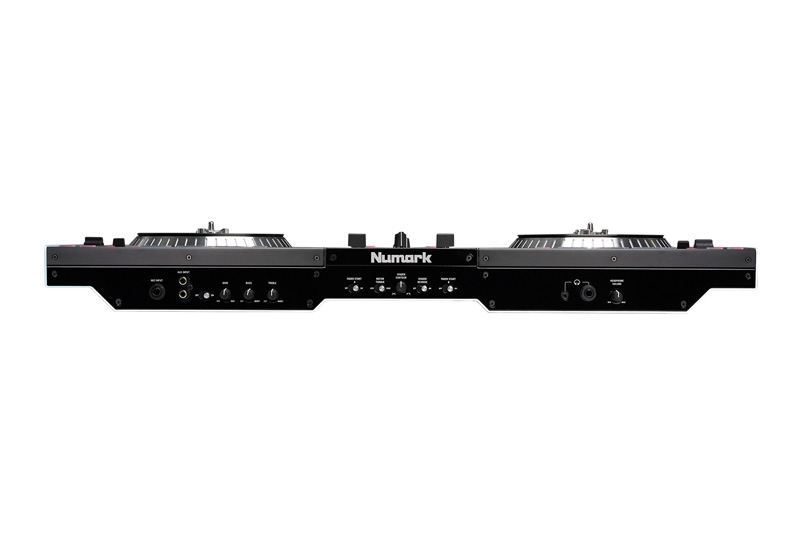

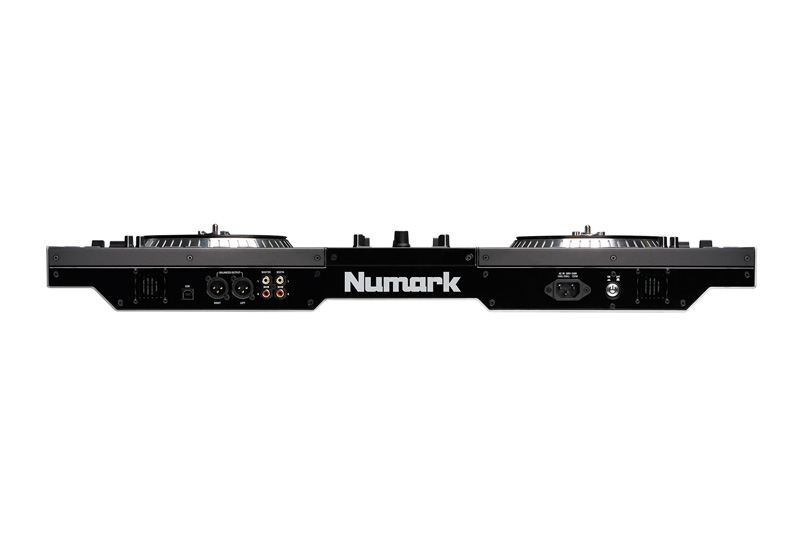

Numark NS7

All-metal chassis with motorized, aluminum-turntable platters and real 7’’ vinyl. Adjust the torque easily to suit any style of DJing with a professional audio interface, it will satisfy even the most hardcore turntablist.

Features

  • Direct-drive, motorized turntable platters with classic and modern feel settings.
  • Premium audio circuitry with mic and line inputs, system and cue outs.
  • Extensive loop, cue, and track-access controls.
  • Strip Search virtual-needle-drop control.
  • Controls most MIDI applications without requiring a mouse or keyboard.
  • Rugged, all-metal construction.
  • High quality, replaceable, customizable CP-PRO crossfader and
    D-TYPE line faders.
  • Mix using either 33rpm or 45rpm speeds.
  • Support for the Numark NSFX - a Serato ITCH FX controller
Find a distributor

Minimum Specifications

The following are the minimum requirements to run ITCH. For best performance and for use in professional situations Serato always recommends you use a higher spec computer than what is listed below. 1

Mac

Windows
Operating System Mac OS X 10.6.8+ Windows XP / Vista / Win7
Processor 32-bit: 1.8GHz Core Duo
64-bit: 2.4Ghz Core Duo		 32-bit: 1.8GHz Core 2 Duo
64-bit Vista: 2.2GHz Core 2 Duo
64-bit Win7: 2.4GHz Core 2 Duo
RAM 32-bit: 1GB
64-bit: 4GB		 32-bit XP: 1GB
32-bit Vista / Win7: 2GB
64-bit: 4GB
Screen Resolution 1024 x 768 1024 x 768
USB Port 2.0 2.0

Technical Specifications

  • SNR (Full Signal Path):
    • Balanced Outputs (XLR): > 98 dB (A-weighted)
    • Unbalanced Outputs (RCA): > 98 dB (A-weighted)
    • Headphone Outputs (1/4", 1/8"): > 93 dB (A-weighted)
  • THD + N:
    • Balanced Outputs (XLR): < 0.01% (A-weighted)
    • Unbalanced Outputs (RCA): < 0.01% (A-weighted)
    • Headphone Outputs (1/4", 1/8"): < 0.01% (A-weighted)
  • Maximum Output:
    • Balanced Outputs (XLR): + 26.3 dBu into > 1kΩ
    • Unbalanced Outputs (RCA): + 14.25 dBu into > 1kΩ
    • Headphone Outputs (1/4", 1/8"): + 19 dBu into > 32Ω
  • Frequency Response: 22 Hz – 22kHz (+0/-0.5 dB)
  • Sample Rate: 44.1 kHz
  • Bit Depth: 24-bit
  • Weight: 35.5 lbs. (16.1 kg)
  • Dimensions (W x D x H): 30" x 15 7/8" x 3 7/8" (762mm x 403.2mm x 98.4mm)
